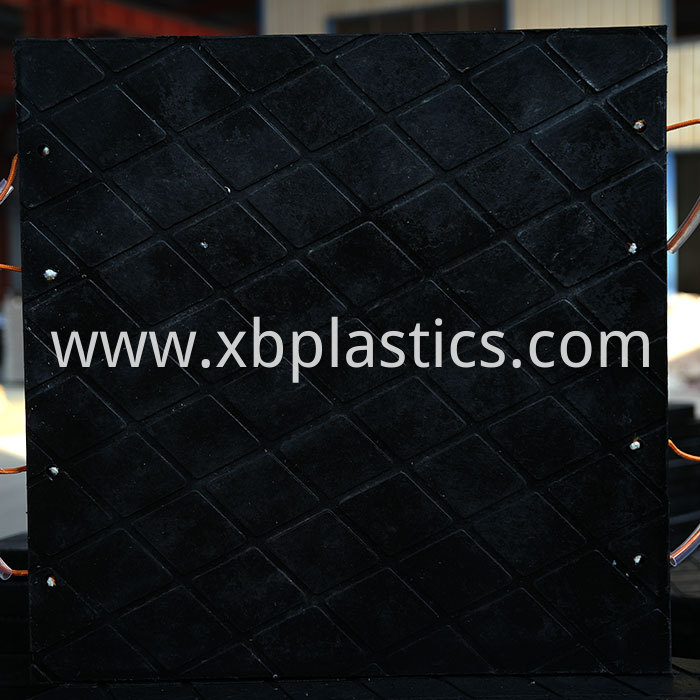

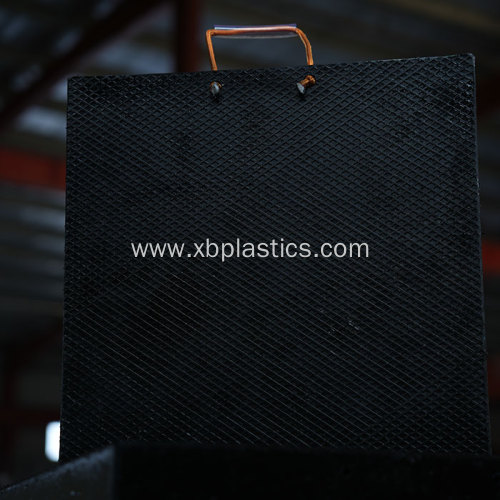

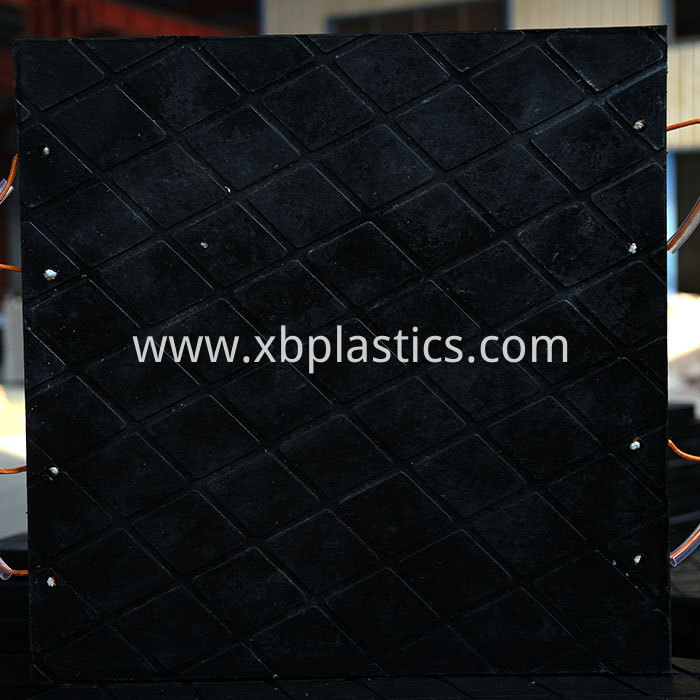

outrigger pads for bucket truck

Our outrigger pads are made from high quality UHMWPE material, a safer alternative to wood and steel plates, designed to withstand extreme pressure and large load capacities.

Strong, lightweight and easy to handle, our outrigger pads provide maximum strength and support for the toughest lifting applications...and they won't splinter or corrode! Our tough, functional pads are water, oil and chemical resistant and are able to conform to the contours of uneven terrain while maintaining their shape.

Our outrigger pads are built to last - they've been tested extensively and are available in a variety of sizes to fit your equipment.

Outrigger pads are suitable for various factories and machinery.

Widely used by operators of access platforms, vehicle mounted boom lifts, cranes and mobile plant, and for exhibition and trailer units, they provide effective support for stabilisers and outrigger feet on terrain where load bearing capacity is an issue, such as soft ground or sensitive flooring. They reduce the overall pressure on the ground by spreading the load over a larger surface area and effectively supporting the equipment.

OUTRIGGER PAD DIMENSIONS

Thickness(mm)	Specification(mm)	Weight(kgs)	Load bearing(mm)
25	500*500	6.25	55
	600*600	9	60
	800*800	16	81
	1000*1000	25	93
	1200*1200	36	130
	Dia.800	12.5	78
	Dia.1000	20	91
	Dia.1200	28	110
40	500*500	10	56
	600*600	14.4	61
	800*800	25.6	82
	1000*1000	40	94
	1200*1200	57.6	131
	Dia.800	20	80
	Dia.1000	32	92
	Dia.1200	45	130
50	500*500	6.25	58
	600*600	9	62
	800*800	16	85
	1000*1000	25	98
	1200*1200	36	140
	Dia.800	12.5	83
	Dia.1000	20	95
	Dia.1200	28	137
80	800*800	38.4	86
	1000*1000	60	99
	1200*1200	86.4	133
	Dia.800	30	84
	Dia.1000	48	96

Features

·Engineered Thermoplastic Construction

·Industrial Grade Safety Texturing

·Rounded Edges & Corners

·Waterproof and Chemical Resistant

·Non-Conductive

·Personalization stamping, engraving, decal options

Application
