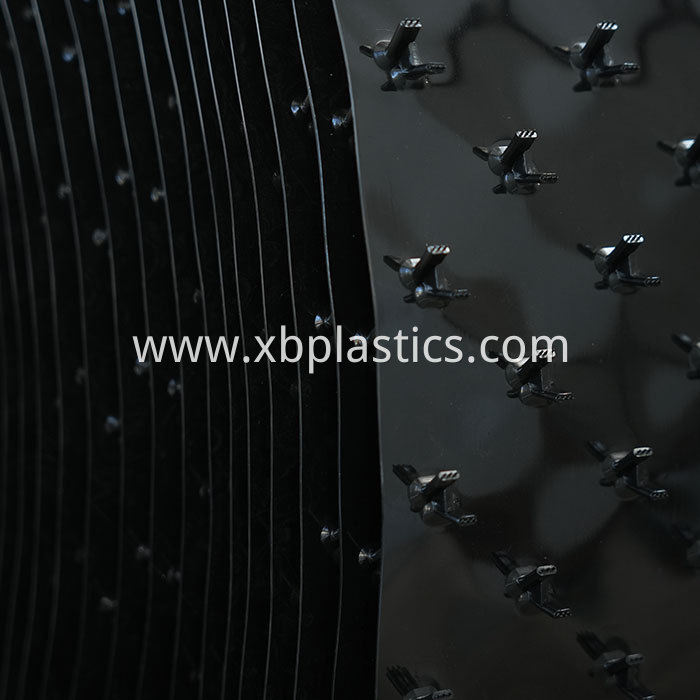

Concrete Protective Mat HDPE V Lock liner

HDPE V lock liner is used to protect concrete structures from corrosion, erosion and mechanical damage.

Providing superior long-tern protection, our Concrete Protection Liner can help extend the lifespan of a wide variety of concrete structures including cast-in place sewer tunnels, sump pits, liquid storage tanks and more.

The Concrete protective liner is made from High Density Polyethylene (HDPE), just like his name, i's a ideal material to perfect protect the concrete pipe or the channel from the chemical or polluted water, as it combined all advantage of thermoplastic such as flexible, corrosion resistance, it protected effectively and the durability is increased.

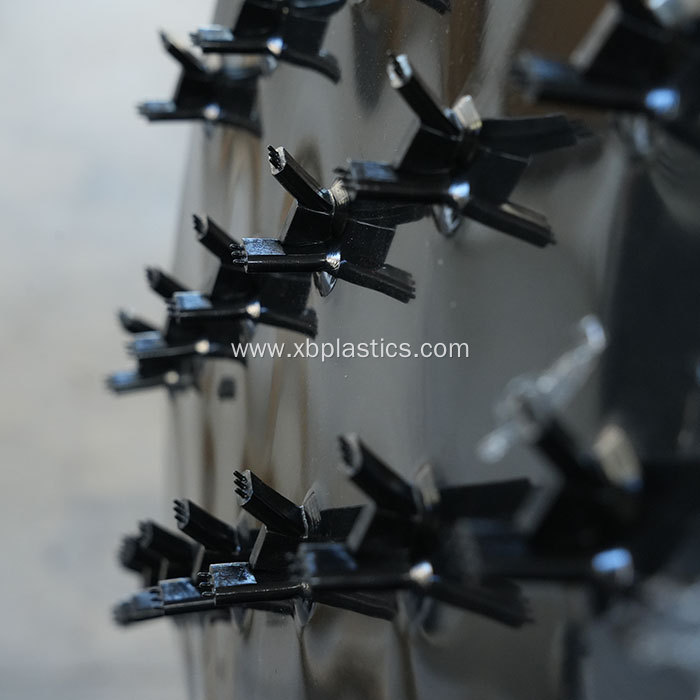

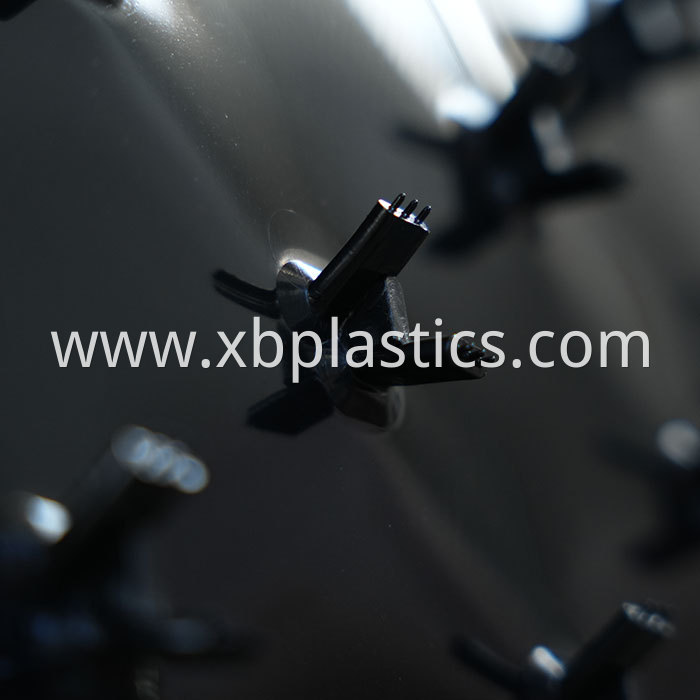

HDPE ultra grip concrete protective liner is a product that can be used to protect concrete structures from corrosion, abrasion and chemical attack. It consists of a high-density polyethylene (HDPE) sheet with anchoring studs on one side that are embedded into the concrete surface.

The HDPE sheet provides a durable and impermeable barrier that prevents water and aggressive substances from reaching the concrete. The anchoring studs create a mechanical bond between the liner and the concrete that can withstand high loads and stresses.

HDPE ultra grip concrete protective liner has several advantages over other methods of concrete protection, such as coatings, paints or epoxy. It is resistant to UV rays, temperature changes, cracking and peeling.

It can be installed on new or existing structures with minimal preparation and disruption. It can conform to complex shapes and curves without compromising its performance. It can also be easily repaired or replaced if damaged.

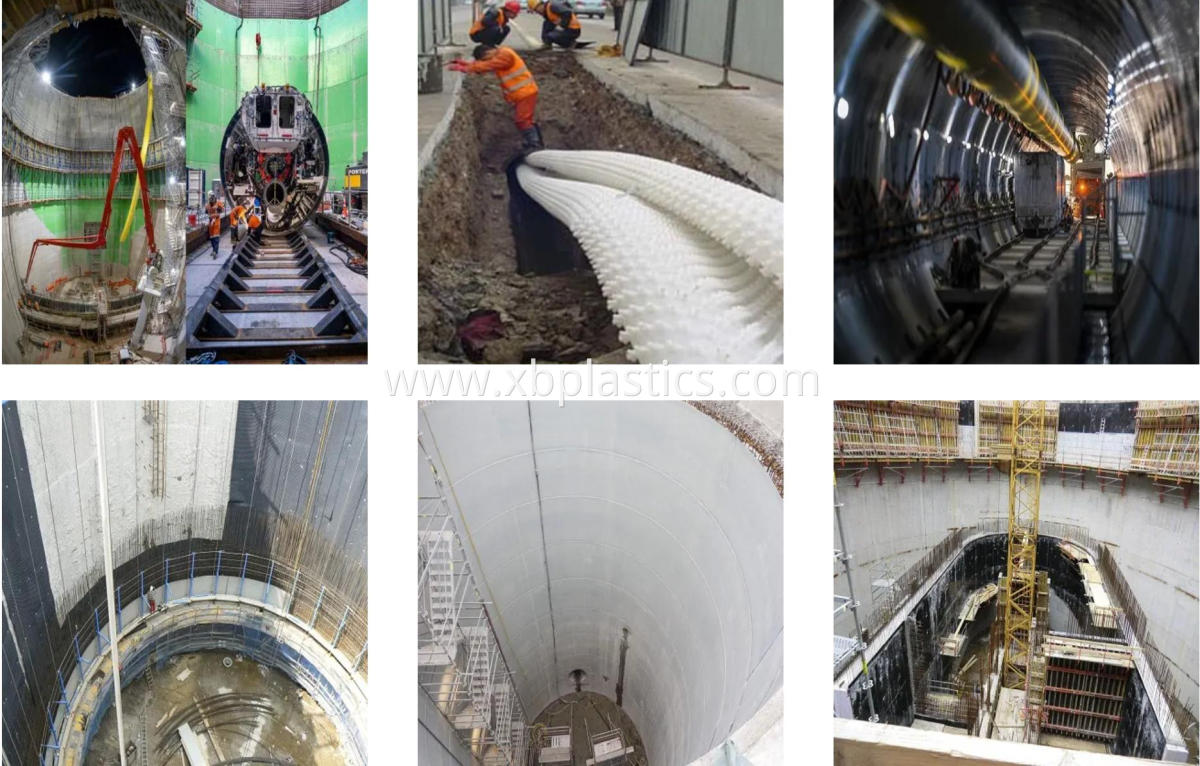

Some of the applications of HDPE ultra grip concrete protective liner include wastewater treatment plants, pipelines, tunnels, bridges, dams, reservoirs and industrial facilities. By using this product, owners and operators can extend the service life of their concrete assets and reduce maintenance costs.

Specification

Width：  2m

Length：Unlimited

Thickness：1-2mm

Roll weight：Roll weight

Height of the anchor：14.5mm

Width of the anchor：22mm

Anchors strengthening shear：Not less than 2500N

Tensile strength：25MPa

Application
